? 3 adet HDMI giriş portuna sahiptir.
? HDMI 2.0 desteği
? Portlar arasında hızlı video dağıtımı
? 4K x 2K ve 2160p 3D?ye kadar video çözünürlük desteği
? Otomatik giriş tanımlama desteği
? ARC fonksiyonu desteği
? 8K ESD koruması desteği
? HDMI 5V Power Supply ve DC 5V güç desteği

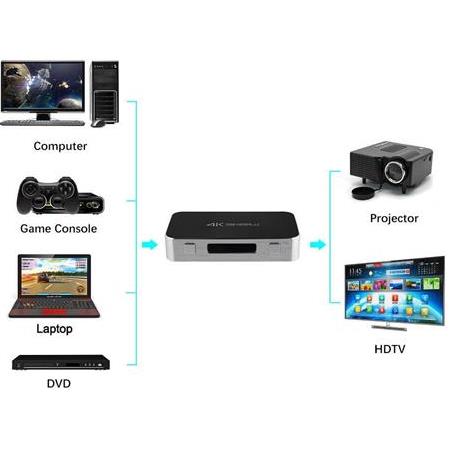

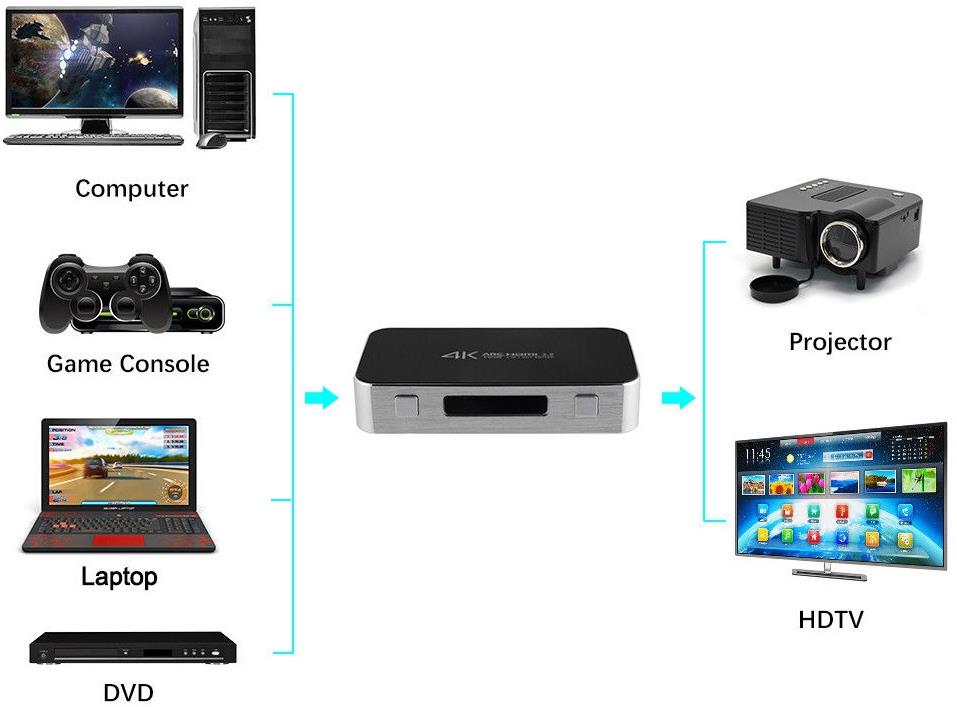

Allows you to connect up to 4 HDMI devices to 1 HDMI display port on your HDTV/Projector/Monitor, easily switch device by remote controller.
Compatible with HDMI2.0 and HDTV with HDCP 2.2 function, each port supports HDMI protocol input.
Support high-resolution 480P, 720P, 1080P, 1080p 3D, 2160P 60HZ input.
Support compressed audio: DTS Digital, Dolby Digital (DTS-HD and DOLBY)
Support video output broadband up to 3Gbps/300MHZ.
Support automatically identify signal source, and automatically jump to the next port with signal sources when the signal source is disconnected.
Support MHL function, with LED indication function.
Specifications:
HDMI Version: HDMI 2.0
HDMI Resolution: 24/50/60fs/3840 * 2160/1080p/1080i/720p/480p/480i
Support Video Format: 3D video format
Support Video Color Format: 24/30/36 bit dark
Support Audio Formats: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Maximum Bandwidth Transmission: 225MHz
The Maximum Transfer Rate: 2.25Gbps
Input Cable Length: ?15m 26 HDMI standard cable
Output Cable Length: ?25m 26 HDMI standard cable
Maximum Operating Current: 800mA
Power Adapter Specifications: AC (50HZ, 60HZ) 100V-240V; Output: DC 5V/1A
Operating Temperature Range: -15?~+55?
Dimension: Approx. 102 x 60 x 20mm / 4.02" x 2.36" x 0.79"
